NEW QUESTION # 18
Which of the following documents defines the responsibilities and duties of the contractor during construction?
- A. B101
- B. A201
- C. G702
- D. A101
Answer: B
Explanation:
A201 is the General Conditions of the Contract for Construction and outlines duties, rights, and responsibilities of the contractor. This includes site supervision, safety, and conformance with documents.
ARE Handbook Objective 1.4 focuses on interpreting contract documents.
NEW QUESTION # 19
A construction detail for a window sill shows metal flashing terminating behind the exterior cladding. Which principle is being demonstrated?
- A. Structural redundancy
- B. Air barrier continuity
- C. Thermal bridging
- D. Water management
Answer: D
Explanation:
Proper flashing is critical for water shedding and moisture protection. Flashing behind the cladding allows water to drain outward-addressing ARE Objective 3.3: Evaluate construction details for moisture control.
NEW QUESTION # 20
In an air-conditioned space in a tropical environment, roof insulation is being applied above a structural deck.
In order to avoid problems related to condensation, where should the vapor barrier be installed?
- A. Below the insulation
- B. Below the structural deck
- C. Above the insulation
- D. Below the ceiling
Answer: A
Explanation:
In a tropical climate, the interior is cooler and drier than the hot, humid exterior. The vapor drive is from outside # inside, so the vapor retarder must be installed on the warm/moist side of the assembly, which is below the insulation when the insulation is above the roof deck. This prevents moist exterior air from reaching cooler surfaces inside the insulation where condensation could occur.
PDD Reference: Psychrometrics & vapor drive principles, PDD "Thermal & Moisture Protection-Placement of vapor barriers," ASHRAE Handbook recommendations.
NEW QUESTION # 21
In the design of a barrier-free access route, door locksets should be equipped with which one of the following?
- A. Panic devices
- B. Knurled knobs
- C. Grip handles with thumbpieces
- D. Lever handles
Answer: D
Explanation:
For barrier-free (ADA) accessible routes, operable parts such as door hardware must be usable with one hand and not require tight grasping, pinching, or twisting of the wrist (2010 ADA Standards §404.2.7). Lever handles meet this requirement because they can be operated by users with limited grip strength or dexterity.
A). Grip handles with thumbpieces - Often require pinching or twisting; not compliant for barrier-free.
B). Knurled knobs - Non-compliant because they require twisting and strong grip; also typically used for hazardous rooms as a tactile warning.
D). Panic devices - Allowed in certain egress conditions but not the universal ADA hardware requirement for standard accessible doors.
PDD Reference: ARE 5.0 Handbook, PDD "Codes and Regulations-Accessibility," 2010 ADA Standards
§404.2.7, ICC A117.1 Accessibility Standard.
NEW QUESTION # 22
Refer to the exhibit.
Which of the following examples of wood paneling depicts the method of "slip matching" between adjacent wood veneers?
- A. C
- B. D
- C. B
- D. A
Answer: D
Explanation:
Understanding Slip Matching in Wood Veneer
When wood veneer is sliced from a log, each sheet (or "leaf") has a repeating grain pattern. How those sheets are arranged side-by-side on a panel is called the matching method.
Slip Matching:
* Consecutive leaves are laid side-by-side without flipping or reversing them.
* This creates a repeating grain pattern that flows consistently across the panel.
* The result is a uniform, continuous grain with no "mirror image" effect - the cathedrals and figure in the grain run in the same direction from sheet to sheet.
* Slip matching often produces a striped effect if the grain is straight, or a flowing, consistent repeat if the grain is more figured.
Identifying Slip Matching in the Exhibit:
* Option A shows consecutive veneer leaves with the grain pattern running in the same orientation across the panel - no mirroring, only repetition. This is classic slip match.
* Option B shows book matching - where every other leaf is flipped horizontally to create a mirrored grain pattern.
* Option C appears to be random matching - leaves are placed without grain sequence alignment.
* Option D shows reverse slip matching - similar to slip match but alternating leaves are reversed end- to-end.
NCARB ARE 5.0 PDD Study Guide References:
* Content Area: Integration of Materials & Finishes - Millwork and Casework Veneer Matching Methods
* Sources:
* Architectural Woodwork Standards (AWS) - Section on Veneer Matching
* Architectural Graphic Standards - Finish Carpentry and Veneer Matching
* Building Construction Illustrated (Ching) - Interior Finish Carpentry Key Point:
Slip matching keeps all veneer leaves in the same orientation, producing a consistent flow of the grain without the mirrored effect seen in book matching.
NEW QUESTION # 23
During an analysis of an existing sanitary sewer crossing a proposed building site, it was determined that the outflow invert at one manhole was 120 feet and the inflow invert at the next manhole, which is 200 feet downstream, was 117 feet.
What is the percentage of slope between the two manholes?
- A. 2%
- B. 3%
- C. 1.5%
Answer: C
Explanation:

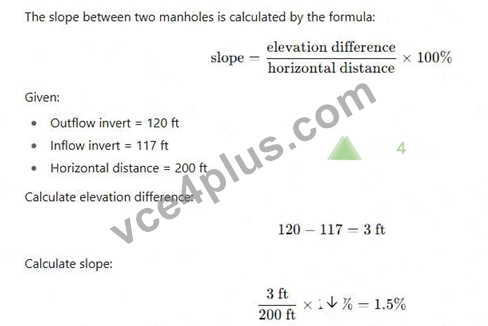

Reference:
NCARB ARE 5.0 Review Manual, Site Design and Civil Engineering chapter
Sanitary sewer design principles and slope requirements
NEW QUESTION # 24
Owners of a busy two-story theater complex want to renovate. The new renovations include increasing the second floor lobby and doubling the number of second floor movie screens. The owner favors the use of escalators. Movies are scheduled to start simultaneously every three hours. The theater currently has a pair of
24-inch-wide parallel escalators, one of which goes up and the other down.
Which of the following should be proposed to accommodate the increased traffic to the second floor?
- A. Install a new elevator in the lobby
- B. Install a new escalator that reverses direction
- C. Increase the existing escalator speeds to 130 fpm
- D. Extend balustrades at escalator landings
Answer: B
Explanation:
Given:
The theater doubles its second-floor movie screens, increasing patron traffic.
Existing escalators are two 24-inch wide units, one up and one down, with simultaneous movie start times every 3 hours.
To handle increased traffic:
Increasing existing escalator speed to 130 fpm (option A) is limited by safety and code limits (typically max around 100 fpm); also increases wear.
Installing a new elevator (option B) is helpful for accessibility but does not efficiently handle high flow of large crowds during peak.
Installing a new escalator that reverses direction (option C) (also called a "dance" or "two-way" escalator) allows flexibility to accommodate peak traffic flow-e.g., two escalators up during rush times and one down, or vice versa.
Extending balustrades (option D) improves safety but does not increase capacity.
Therefore, option C is the best solution to manage increased passenger flow.
References:
NCARB ARE 5.0 Review Manual, Environmental Systems and Building Services chapter Vertical transportation design principles in public assembly spaces ASME A17.1 Safety Code for Elevators and Escalators
NEW QUESTION # 25
What is the primary purpose of shop drawings?
- A. Illustrate fabrication and installation methods
- B. Define design intent
- C. Document record drawings
- D. Replace construction drawings
Answer: A
Explanation:
Shop drawings show how components are to be fabricated or installed by the contractor. They do not redefine the design intent but elaborate on it. Refer to Objective 3.4: Evaluate submittals.
NEW QUESTION # 26
An architect has a contract with a local school district to redesign a school reception office to ensure a more efficient interaction between office staff, students, and parents. The following instructions are given to the architect:
* The renovation scope is limited to the footprint only of the existing reception office.
* Additional staff is not proposed for the renovated area.
* The existing ceiling and associated fixtures will be protected from damage during construction.
* The construction of the renovation must occur during the 10-week summer break.
Which of the following series drawings should be included in the documents set?
- A. Mechanical
- B. Structural
- C. Plumbing
- D. Electrical
Answer: D
Explanation:
The scope involves interior renovation of an existing school reception office, limited to the footprint and protecting existing ceiling and fixtures. Additional staff is not proposed, and construction is during a defined
10-week summer break.
Plumbing is unlikely to require new or modified systems unless specified; not mentioned here.
Structural changes are not indicated since footprint remains same and no structural modifications are noted.
Mechanical changes would typically be required if HVAC or ventilation systems are altered, but the ceiling and fixtures (likely including diffusers) must be protected and are presumably left unchanged.
Electrical modifications are common in interior renovations to accommodate lighting, power outlets, communication systems, and potentially security or reception technology updates.
Thus, electrical drawings should be included to cover these updates.
Reference:
NCARB ARE 5.0 Review Manual, Project Development and Documentation, Construction Documents chapter Typical interior renovation scopes often require electrical updates to accommodate new equipment and code compliance.
NEW QUESTION # 27
Where is the proper place to put a vapor barrier in a cold climate?
- A. On the interior between the gypsum wallboard and the framing
- B. On the exterior between the metal siding and the sheathing
- C. In the cavity of the framing space
- D. On the exterior between the framing and the sheathing
Answer: A
Explanation:
In cold climates, the vapor drive is from the warm interior to the cold exterior during winter. The vapor retarder/barrier belongs on the warm-in-winter side of the assembly-i.e., behind the interior gypsum, before the framing/insulation-to prevent interior moisture from reaching cold layers where it could condense.
PDD references: Psychrometrics & vapor drive; vapor retarder placement (ASHRAE; IBC/IECC guidance; ARE 5.0 PDD-Thermal & Moisture Protection).
NEW QUESTION # 28
Why is the vertical surface of a dry-stacked stone wall often battered into the retained material?
- A. Increased resistance to soil thrust
- B. Increased impermeability that reduces equivalent fluid pressure
- C. Increased resistance to surface erosion of the wall
- D. Increased cohesion between individual stones that make up the wall
Answer: A
Explanation:
A battered (leaning back) face on a dry-stacked retaining wall improves stability against lateral earth pressure by shifting the wall's resultant closer to/within the middle third of the base, increasing frictional resistance and reducing overturning. It does not significantly change permeability (C) or directly increase cohesion between stones (D), and erosion resistance (B) is secondary compared to stability.
PDD References: Site & foundation systems-retaining wall behavior, active/passive earth pressures; IBC
/Geotechnical fundamentals; CSI Div. 32 site improvements.
NEW QUESTION # 29
During CD phase, the architect notices plumbing lines clash with roof trusses. What should the architect do first?
- A. Notify the contractor
- B. Add soffits to conceal pipes
- C. Consult with the plumbing engineer
- D. Revise the truss design
Answer: C
Explanation:
Coordination is essential in PDD. When a clash arises, the architect must consult with the responsible consultant (plumbing engineer). This supports Objective 3.1: Coordinate consultant drawings.
NEW QUESTION # 30
Which document is the most appropriate location for specifying the finish material for casework?
- A. Outline Specifications
- B. Project Manual - Division 06
- C. General Conditions
- D. Construction Drawings
Answer: B
Explanation:
Division 06 (Wood, Plastics, and Composites) of the Project Manual contains detailed specifications for finish carpentry and casework materials. This aligns with ARE Objective 2.1: Evaluate project manual sections for technical accuracy.
NEW QUESTION # 31
Refer to the exhibit.
The construction method shown in the detail should be used to prevent cracking in which of the following situations?
- A. Exposed structural steel frame with no partitions to the structure
- B. Concrete flat slab buildings with exposed slab ceilings
- C. Concrete frame buildings with drywall suspended ceilings
- D. Structural steel frame buildings with plaster ceilings
Answer: C
Explanation:
The detail shows a steel runner with sheetrock and screws, typical for drywall suspended ceiling assemblies.
This construction method is commonly used in concrete frame buildings with drywall ceilings suspended below the structural slab.
It helps prevent cracking by accommodating building movement and separating finish materials from structural movement.
Structural steel frame buildings with plaster ceilings typically have different finish and framing details.
Concrete flat slabs with exposed ceilings have no finish requiring such assemblies.
Exposed steel frames without partitions don't need drywall framing.
Reference:
NCARB ARE 5.0 Review Manual, Materials and Assemblies chapter
Interior finishes and drywall system installation guides (Gypsum Association)
NEW QUESTION # 32
During drawing review, a discrepancy is found between the drawings and room 101 on the finish schedule.

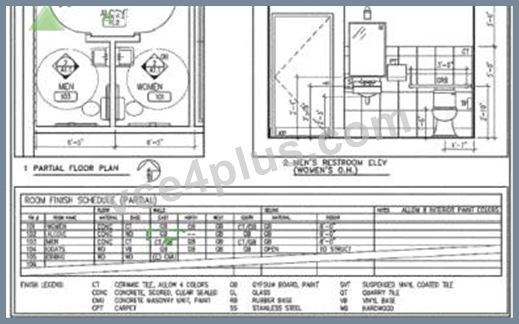

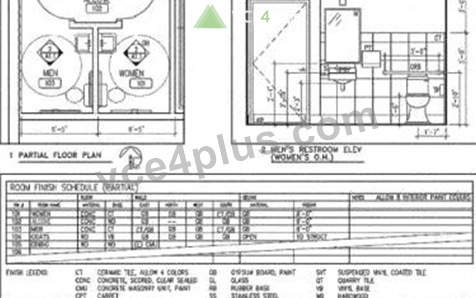

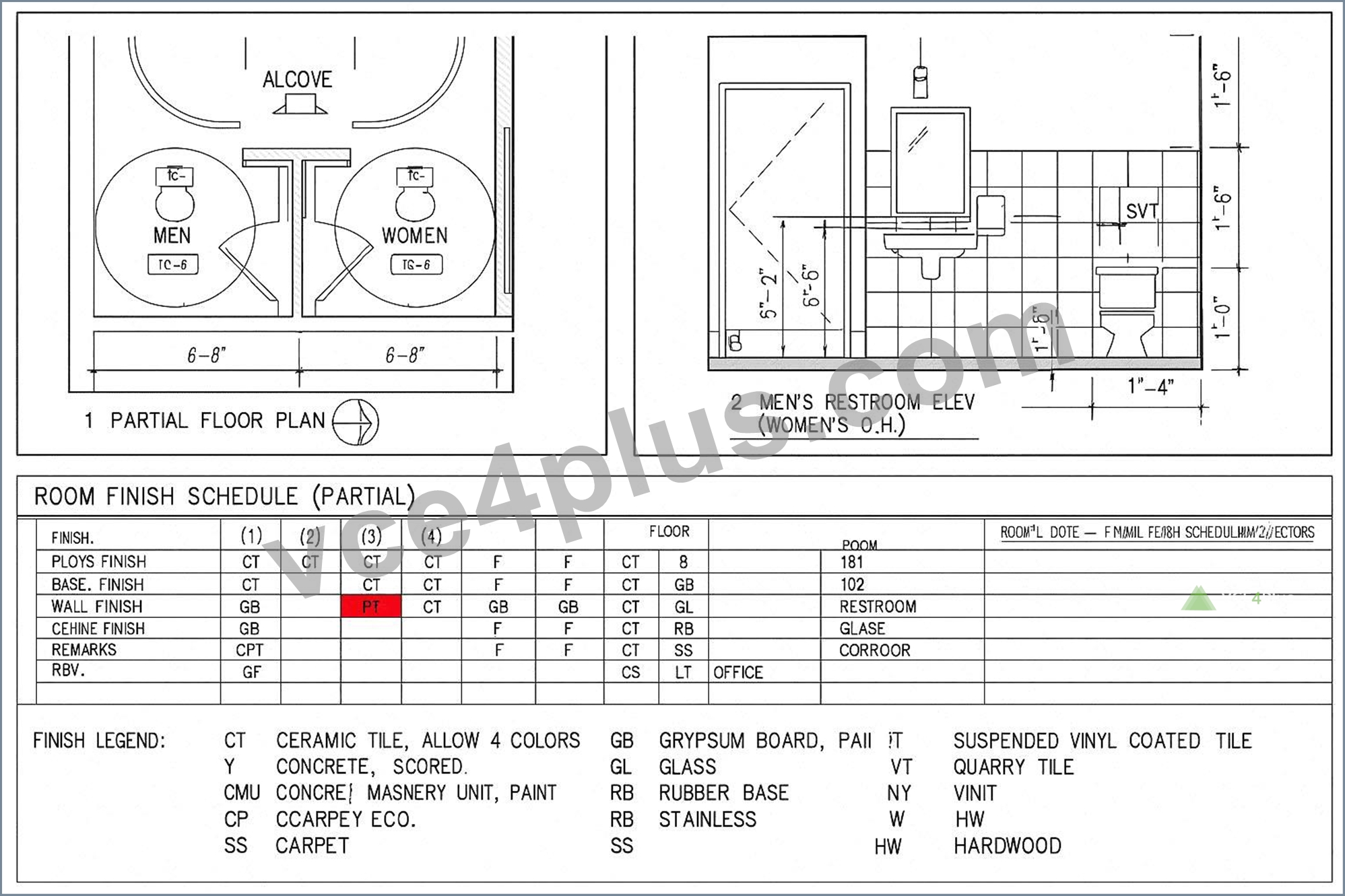

Click in the cell on the room finish schedule that does not match the drawings.
Answer:
Explanation:
Explanation:
Generated image
To identify the discrepancy between the drawings and the Room Finish Schedule for Room 101, compare what's shown in the restroom elevation and plan versus the listed finishes.
Step-by-step comparison:
* Room 101 (Women's Restroom) is shown with:
* Wall finish: Clearly shows tile (CT) on the lower half of the walls in the elevation.
* But in the finish schedule, Room 101 has "PT" (paint) listed under wall finish.
# Therefore, the error is in the wall finish cell for Room 101, which should show CT (ceramic tile), not PT (paint).
NEW QUESTION # 33
In which of the following locations should wood building products be pressure treated when used in a climate that promotes decay? Check the four that apply.
- A. Wood window casing less than 24 inches above grade
- B. Wood doors in contact with thresholds
- C. Wood members used in conjunction with roofing or flashing
- D. Wood siding closer than 6 inches to exterior finish grade
- E. Wood members at grade, below grade, or less than 8 inches above grade
- F. Wood members in contact with masonry or concrete
Answer: A,D,E,F
Explanation:
The IBC and AWPA (American Wood Protection Association) standards require pressure treatment of wood in decay-prone climates when in contact with moisture-retaining materials (masonry/concrete), near grade, or within splash zones.
A: Moisture can wick from masonry/concrete into wood # decay risk.
B: Close proximity to soil promotes decay/insect activity.
D: Siding <6" above grade risks splashback and prolonged wetting.
E: Window casings <24" above grade are exposed to rain splash.
C: Roofing/flashing interface doesn't require PT unless actual contact with wet substrate is expected.
F: Doors with thresholds don't require PT unless the door bottom is wood in constant wetting.
PDD Reference: IBC §2304.11; ARE 5.0 PDD "Materials-Wood decay & termite resistance."
NEW QUESTION # 34
The architect has completed 60% of the construction documents. The owner wants to establish the guaranteed maximum price (GMP) at this point before 100% of the construction documents are complete. Several flooring finish items are still undetermined.
What should be included in the project manual to make sure the contractor has a cost to cover all finishes?
- A. Allowance of $30/sq. yd. for floor finishes
- B. Contingency of 10% added to the overall construction cost
- C. Alternate to change broadloom carpet to carpet tile
- D. Schedule of flooring unit prices to be completed by the contractor
Answer: A
Explanation:
When a GMP (Guaranteed Maximum Price) is established before the design is 100% complete and specific materials are not yet chosen, the correct approach is to specify allowances in the project manual.
An allowance is a fixed monetary amount for a specific scope item (e.g., flooring finishes) that allows the contractor to carry a cost in the bid/GMP until the actual product is selected. This ensures the GMP covers the item without delaying pricing.
A). Contingency - Is for unforeseen conditions, not specific unselected finishes.
B). Schedule of unit prices - Typically used for variable-quantity work, not for unknown product selection.
D). Alternate - Provides an option for substitution, but does not guarantee a base cost in the GMP.
PDD Reference: ARE 5.0 PDD "Project Manual and Specifications-Allowances, Alternates, and Unit Prices," AIA A201 §3.8, CSI Division 01-General Requirements.
NEW QUESTION # 35
Refer to the exhibit.

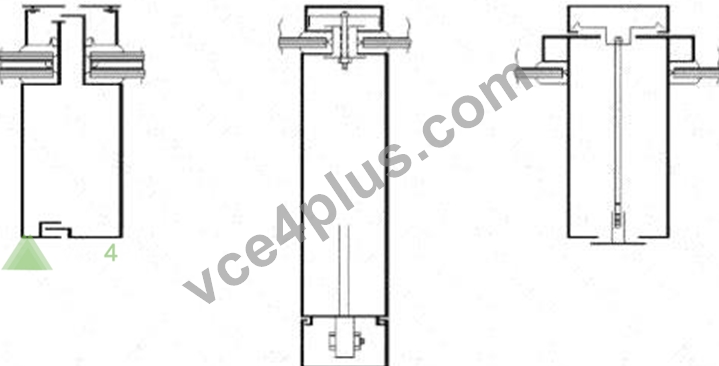

In the curtain wall systems shown, each of the aluminum mullions is designed to allow for which of the following?
- A. Surface tension
- B. Horizontal expansion
- C. Capillary action
- D. Vertical expansion
Answer: D
Explanation:
1. Understanding the Diagram
The three sections in the exhibit show different curtain wall mullion profiles (vertical and horizontal sections) designed for glazing systems.
In curtain wall design, aluminum mullions must accommodate:
* Structural loads (wind, dead load of glass, seismic)
* Thermal expansion and contraction of metal members
* Building movement (floor-to-floor deflection, live load, creep, seismic drift)
2. Why Vertical Expansion is Relevant
* The vertical mullions in curtain wall systems span multiple floors and are typically anchored at one end and allowed to float/slip at the other end to accommodate vertical building movement.
* Movement can be due to:
* Thermal expansion of aluminum mullions (aluminum has a high coefficient of thermal expansion).
* Inter-story drift from lateral loads.
* Floor live-load deflection.
* The mullion joinery and connections at the anchors are specifically detailed to allow vertical sliding while maintaining weather seals.
3. Why Other Options Are Incorrect
* A. Capillary action - This refers to water movement in small spaces; curtain walls are designed with weeps and pressure-equalized cavities to prevent it, but that is not what the mullion's slip connections are for.
* B. Horizontal expansion - Horizontal movement is generally handled at horizontal mullions
/transoms or gasket joints, not the vertical mullion extrusion as shown.
* D. Surface tension - Refers to water behavior, not a structural or thermal movement design issue.
4. NCARB ARE 5.0 PDD Study Guide References
* Content Area: Building Envelope Systems - Curtain Wall Detailing
* Key Sources:
* Architectural Graphic Standards - Curtain wall movement joints
* Building Construction Illustrated (Ching) - Curtain wall expansion and anchoring details
* AAMA (American Architectural Manufacturers Association) Curtain Wall Design Guide - Section on thermal movement and inter-story drift
NEW QUESTION # 36
An architect is designing a school building that features a flat roof with a low parapet wall in a wet climate region. The client wants to minimize maintenance requirements and focus on keeping water from the walls.
What parapet coping detail would be most appropriate for the architect to select for this project?
- A. B
- B. A
- C. C
Answer: C
Explanation:
Understanding the Problem
The question addresses parapet coping design in a wet climate with a focus on:
* Minimizing maintenance
* Preventing water from running down the face of the wall
Parapet copings protect the top of the parapet wall from water penetration and are designed to shed water away from the wall below.
Analysis of the Options
A). Flat Coping
* A flat coping (Option A) has no slope and allows water to pool on the surface.
* This pooling increases the likelihood of infiltration and material deterioration over time.
* In wet climates, this is poor practice because standing water leads to freeze-thaw damage, staining, and faster degradation.
* Maintenance needs are higher.
B). Single-Slope Coping
* This coping (Option B) has a slope toward one side, which improves drainage.
* However, if sloped toward the inside of the parapet, it increases roof drainage load and risk of water penetration at roof/wall junction.
* If sloped toward the outside, water can run down the wall face, which the client specifically wants to avoid.
* This design might also stain exterior wall finishes over time.
C). Double-Slope (Pitched) Coping with Drip Edges
* This coping (Option C) is pitched toward both sides, with drip edges to break water runoff before it reaches the wall face.
* Water is shed away efficiently, and drip grooves prevent capillary action that would pull water back toward the wall.
* This is best practice in wet climates and greatly reduces maintenance by preventing staining and wall saturation.
* Recommended by NRCA (National Roofing Contractors Association) and referenced in Architectural Graphic Standards for parapet detailing.
NCARB ARE 5.0 PDD Reference:
* Content Area: Integration of Building Materials & Systems - Building Envelope Detailing
* Source Materials:
* Architectural Graphic Standards - Parapet Cap/Coping Details
* Building Construction Illustrated by Francis D.K. Ching - Water Management & Flashing
* NRCA Roofing Manual - Best Practices for Roof Edge & Parapet Design
* Key Principle: Parapet copings in wet climates should always slope to shed water away, incorporate overhangs with drips, and prevent water from cascading down the building face.
NEW QUESTION # 37
For the same moment, a glue-laminated beam would require a section modulus of what proportion relative to a sawn timber beam? (Assume F# of the glue-laminated beam is 2,400 psi and F# of the sawn lumber beam equals 1,200 psi.)
- A. 1/2
- B. 3/4
- C. The same
- D. 0
Answer: A
Explanation:
Comprehensive Detailed Explanation with all NCARB ARE 5.0 Project Development and Documentation (PDD) Study Guide References:

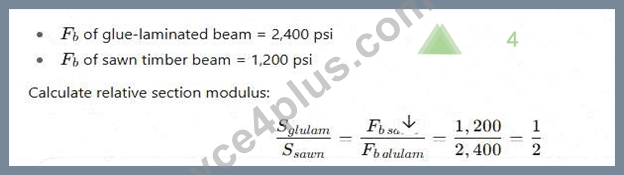

The question is about the relative section modulus (S) required for a glue-laminated beam vs. a sawn timber beam to resist the same bending moment. The formula relating bending stress (Fb), moment (M), and section modulus (S) is:
For the same bending moment M, the section modulus is inversely proportional to the allowable bending stress
Therefore, the glue-laminated beam requires half the section modulus compared to the sawn timber beam.
Supporting Reference:
NCARB ARE 5.0 Review Manual, Structural Systems chapter
Basic bending stress and beam design equations from structural design texts
NEW QUESTION # 38
A family-owned apple farm in the Upper Midwest is taking advantage of a change in the local zoning code that added a new Agri-Tourism class in the existing farm zone. This allows the Owner to build a new facility on their existing site. The building will be open to the public and include a brewery, distillery, tap room, and market. The architect is ready to submit the drawings to the Owner for the 50% construction documents review.
To accommodate a compressed construction schedule, the Owner will be utilizing a design-build process. The Contractor has submitted the Pre-Engineered Metal Building (PEMB) shop drawings to the Architect for review, due to the lead time on this critical path item. Once construction begins, farming operations must be able to continue uninterrupted.
Key project information includes:
* Brewing and distilling will operate year-round.
* Brewery will initially include four fermenting tanks. Owner has requested space for at least two additional tanks. Potential expansion will be based on future sales.
* Distillery will produce 16% alcohol, which is classified as a flammable liquid. Fire separations are required.
* Tap Room is designed with seating for 300 people, not including exterior patio seating. It will have views to the working orchards and the historic buildings on site.
* Tap Room is scheduled to be open from August through November. Owner would like options to extend operating dates based on popularity.
* The Market area will feature local farm products and is not conditioned.
* Entire building will be fully sprinklered.
* Selected building materials are low-maintenance, as requested by the Owner, for durability and to reflect the nature of a working farm.
* Mechanical and electrical systems will be hung from the building structure. These loads are included in PEMB shop drawings.
* Public water and sewer is not available at the Project Site.
* Occupancy sensors are included to reduce utility costs and achieve energy conservation requirements.
The following resources are available for your reference:
* Architectural Drawings, including plans, elevations, sections, and schedules
* Consultant Drawings, including structural, HVAC, power distribution, and plumbing
* PEMB Shop Drawings
* Design and Construction Schedule
* Specification Excerpts, showing relevant spec sections
* IBC and ADA Excerpts, showing relevant code and accessibility sections
* After reviewing the documents, the architect discovers a coordination issue in the corridor.
The client wants to add rooftop access for residents. Roof access features include:
Adding a vegetated roof system
Installing an elevated paver patio system
Limiting access to 50 residents at any time
What should the architect do to accommodate this revision? Check the four that apply.
- A. Contact civil engineer
- B. Revise exterior elevations
- C. Consult structural engineer
- D. Provide an exterior exit stair
- E. Consult elevator manufacturer
- F. Provide additional roof details
Answer: B,C,D,F
Explanation:
Interpreting the Scenario
The owner is requesting rooftop access for residents, featuring a vegetated (green) roof, an elevated paver patio, and occupancy limited to 50 people. These revisions introduce new design requirements triggered by building codes (means of egress, structural loads, architectural representation) and coordination challenges across disciplines.
Why Each Selected Option is Required
* Revise Exterior Elevations
* The addition of a rooftop terrace and vegetated roof changes the building's exterior appearance- its massing, parapets, materials, and possibly guardrail heights. These design changes must be reflected in the architectural drawings used for permit issuance and construction.
* Provide an Exterior Exit Stair
* Under the International Building Code (IBC) and general egress requirements, an occupied rooftop (used by people for recreation or amenities) must be safely accessible and egressed.
Occupied roofs require a stairway-an exterior exit stair-rather than just a hatch or ladder ICC+6NYC+6The Building Code Forum+6NYC+4lapeyrestair.com+4NYC+4. This ensures the rooftop can serve as a legal means of egress.
* Provide Additional Roof Details
* Adding a vegetated roof system and a paver patio involves multiple layers (waterproofing, root barrier, drainage, structural substrate, pavers, possibly amenity loading, edge details, guardrails).
The project manual and construction documents must include these specific details to ensure proper assembly and water protection.
* Consult Structural Engineer
* Vegetated roofs and paver patios introduce significant dead loads (soil, plants, saturated weight) and live loads (maintenance personnel, occupants). The structure must be verified to support these loads. Per green roof design standards, structural capacity must be evaluated early in the design process NYC. Consulting the structural engineer ensures safety and code compliance.
Why Other Options Do Not Apply
* E. Consult elevator manufacturer
* There's no indication that elevator access is required or available. Current code triggers elevator access only in specific scenarios (e.g., occupant loads exceeding certain thresholds combined with accessibility requirements). This project doesn't suggest such a need.
* F. Contact civil engineer
* The rooftop change pertains to architectural detailing, structural capacity, and life safety-not site-wide civil issues like grading, stormwater, or utilities. While the vegetated roof may affect overall stormwater management, primary concerns still fall under architectural and structural domains. Typical ARE scope categories engage the geotech/environmental or landscape professional-not necessarily the civil engineer-unless broader site infrastructure is impacted.
NEW QUESTION # 39
Refer to the exhibit.

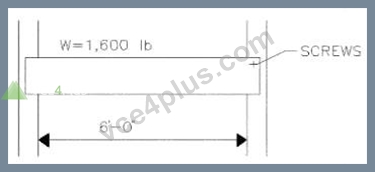

Using metal stud framing, how many screws per stud are needed to connect the header if each screw is rated at 440 pounds for shear and 215 pounds for tension?
- A. 0
- B. 1
- C. 2
- D. 3
Answer: B
Explanation:

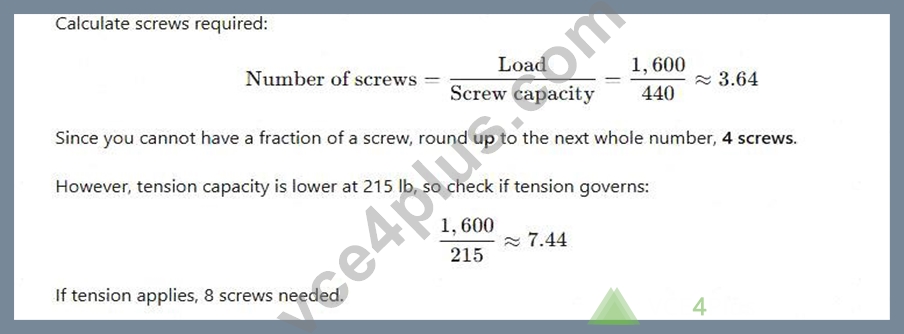

Given:
Load (W) = 1,600 lb
Screw shear capacity = 440 lb per screw
Screw tension capacity = 215 lb per screw
Assuming worst case is shear capacity (usually governs):
If tension applies, 8 screws needed.
But typically, shear governs for header connection; since question likely focuses on shear, 4 screws would be safest.
If question expects minimal number to resist both, 8 screws would be correct.
Final answer: 4 screws (Option C) if shear governs; if considering tension also, 8 screws (Option D).
Since the question is ambiguous, and shear usually controls, C. 4 screws is appropriate.
Reference:
NCARB ARE 5.0 Review Manual, Structural Systems chapter
Metal stud framing connection design standards
NEW QUESTION # 40
Refer to the exhibit.
In the diagram shown, what is the purpose of the pressure relief valve?
- A. Vent the tank of accumulated air
- B. Allow for thermal expansion of water
- C. Regulate water pressure fluctuation
- D. Relive negative pressure when draining the tank
Answer: B
Explanation:

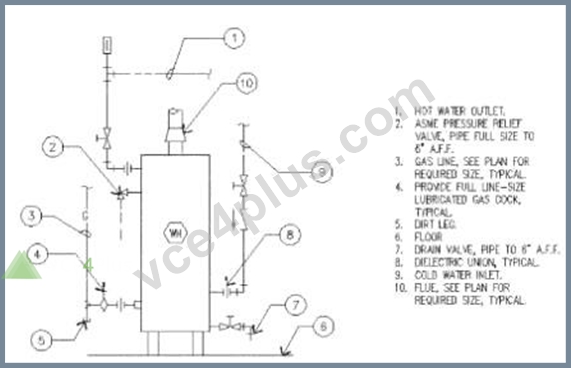

Understanding the Diagram
The diagram shows a water heater (WH) with labeled connections and valves.
Item 2 is the ASME pressure relief valve, piped to 6 inches above the finished floor.
Purpose of the Pressure Relief Valve in a Water Heater
* When water is heated, it expands.
* In a closed plumbing system, this expansion increases pressure inside the water heater tank.
* If the pressure rises above a safe limit, it can damage the heater, piping, or even cause an explosion.
* The temperature and pressure relief valve (T&P valve) automatically opens to discharge water when pressure or temperature exceeds safe limits, relieving the pressure caused by thermal expansion.
Why Other Options Are Incorrect:
* A. Regulate water pressure fluctuation - Pressure regulation is done by a pressure-reducing valve, not a relief valve.
* B. Vent the tank of accumulated air - Air elimination is done with air vents or bleeders, not the T&P valve.
* D. Relieve negative pressure when draining the tank - Negative pressure prevention uses vacuum relief valves, not T&P valves.
NCARB ARE 5.0 PDD Study Guide References:
* Content Area: Plumbing Systems - Equipment and Safety Components
* Source References:
* Plumbing Engineering Design Handbook - Water Heater Safety Devices
* Architectural Graphic Standards - Water Heater Installation Details
* MEEB (Mechanical and Electrical Equipment for Buildings) - Plumbing Chapter: Safety valves in hot water systems
* Code Reference:
* International Plumbing Code (IPC) Section 504.6 - T&P relief valve requirements for water heaters Key Point:
The ASME-rated relief valve's main role is to protect the water heater and piping by relieving excessive pressure due to water expansion from heating.
NEW QUESTION # 41
Refer to the exhibit.
What set of conductors should the building fluorescent Lighting be connected to?
- A. C, A, B
- B. A, B
- C. C,N
- D. C,A,N
Answer: C
Explanation:

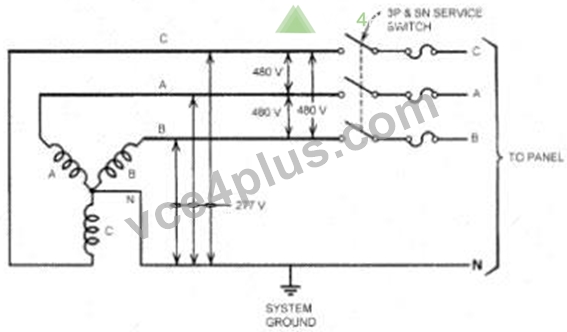

Understanding the Diagram
The diagram shows a 480Y/277V three-phase, four-wire wye-connected system with a neutral (N) and system ground.
* 480 V = Voltage between any two phase conductors (line-to-line)
* 277 V = Voltage between any one phase conductor and neutral (line-to-neutral) Fluorescent Lighting Voltage Requirements
* Standard commercial fluorescent lighting systems are typically designed for 277 V operation in the U.S.
(in buildings with a 480Y/277V system).
* To achieve 277 V, you connect one phase conductor (A, B, or C) to Neutral (N).
* This is a single-phase line-to-neutral connection.
Which Conductors to Use?
* In the given options, the correct pair must give 277 V.
* C, N # 277 V line-to-neutral # Correct for fluorescent lighting.
* Other options produce different results:
* A, B = 480 V (line-to-line) - too high for fluorescent ballasts.
* C, A, B = all three phases - used for three-phase loads, not lighting.
* C, A, N - would give two circuits, but includes extra phase unnecessarily for single-phase lighting.
NCARB ARE 5.0 PDD Study Guide References:
* Content Area: Electrical Systems - Power Distribution and Circuiting for Lighting
* Source References:
* Electrical Systems for Architects - Fluorescent lighting voltage selection
* MEEB (Mechanical and Electrical Equipment for Buildings) - Chapter on Electrical Service and Lighting Systems
* NEC (National Electrical Code) - Voltage to ground for wye-connected systems Key Point:
For a 480Y/277V wye system, fluorescent lighting should be connected from any phase to neutral for 277 V operation.
NEW QUESTION # 42
An architect is designing a new poured-in-place concrete residential tower with individual condo units. The drawings specify exposed cantilevered concrete balconies with glass guardrail parapets. The exterior wall specifications have already been developed and established. They are now coordinating the specification requirements for construction of the balconies in the project manual.
Which items are required to be specified as part of the balcony scope? (Check the four that apply)
- A. Door types
- B. Floor finish coating
- C. Guardrail anchoring
- D. Furnishings
- E. Glazing system
- F. Drainage
Answer: B,C,E,F
Explanation:
In NCARB ARE 5.0 PDD, balconies are considered part of the building envelope and exterior assembly, requiring coordination between structural, architectural, and sometimes MEP elements. The project manual's specification sections for balconies should include all components integral to the balcony's construction and performance - not unrelated furnishings or general door types unless they are directly part of the balcony system.
Reasoning for each selection:
A). Drainage - REQUIRED:
Balconies must include drainage provisions to prevent standing water, freeze-thaw damage, and leakage into units. This is part of Division 07 (Thermal and Moisture Protection) in the CSI MasterFormat and directly tied to durability and code requirements.
B). Floor finish coating - REQUIRED:
The balcony surface finish must be specified for slip resistance, durability, weather resistance, and integration with waterproofing membranes. This is usually in Division 09 (Finishes) but referenced in Division 07 for waterproof coatings.
E). Guardrail anchoring - REQUIRED:
Structural anchorage details for the glass guardrail parapets must be specified to meet IBC load requirements (200 lb concentrated load per IBC 1607.8) and to ensure safety. This falls under Division 05 (Metals) or Division 05/08 integration.
F). Glazing system - REQUIRED:
Glass guardrails involve tempered or laminated safety glazing per IBC Chapter 24 and must be specified, including thickness, type, finish, and installation method.
Why the others are excluded:
C). Furnishings - NOT REQUIRED: Balconies may have furniture, but these are FF&E, not part of the construction scope in the balcony specification.
D). Door types - NOT REQUIRED: Doors leading to balconies are part of the exterior wall fenestration package, not the balcony construction section.
NCARB PDD References:
ARE 5.0 Handbook - PDD Section: Integration of building systems and detailing of assemblies CSI MasterFormat Divisions 05, 07, 08, 09 for balcony scope items IBC 2018 Sections 1607.8, 1015 for guardrail design
NEW QUESTION # 43
......
Use Valid New PDD Test Notes & PDD Valid Exam Guide: https://dumpsstar.vce4plus.com/NCARB/PDD-valid-vce-dumps.html
